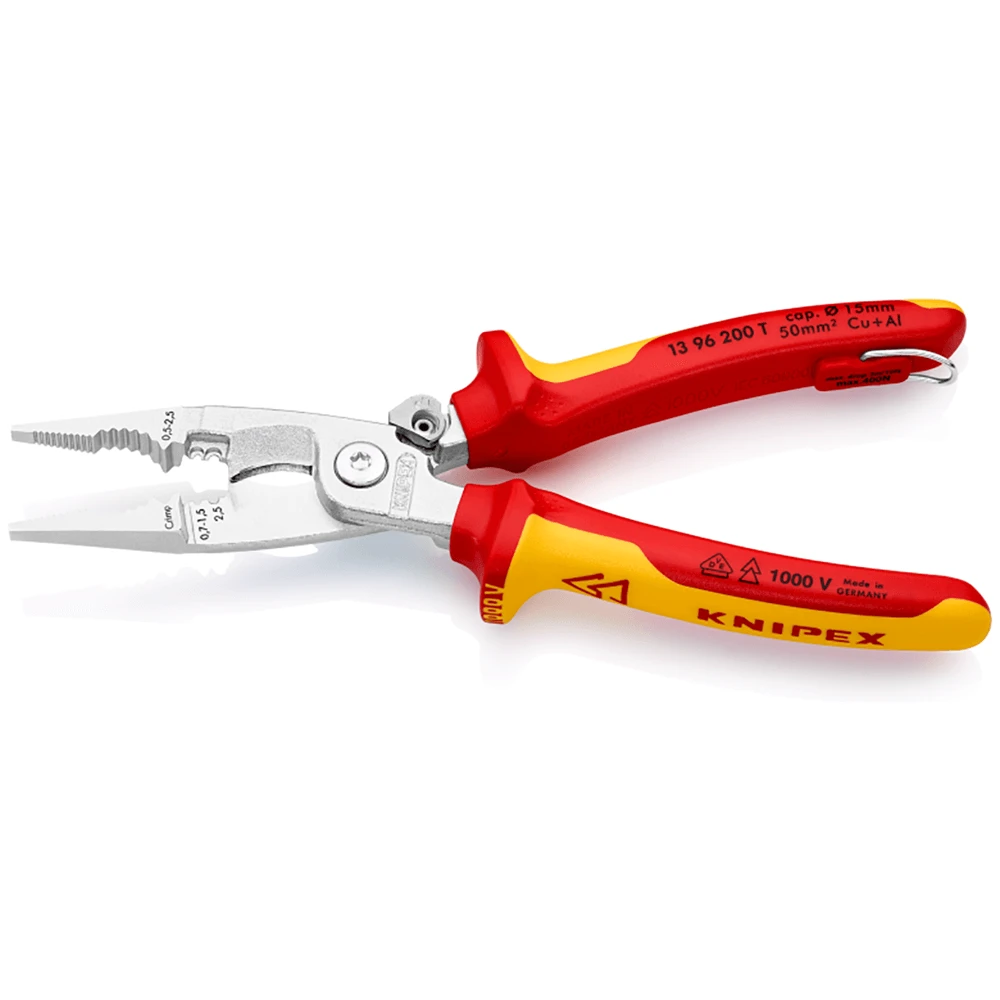

Knipex 1000V Insulated 200mm Tethered Electrical Installation Pliers – 1396200T

Knipex 1000V Insulated 200mm Tethered Electrical Installation Pliers – 1396200T

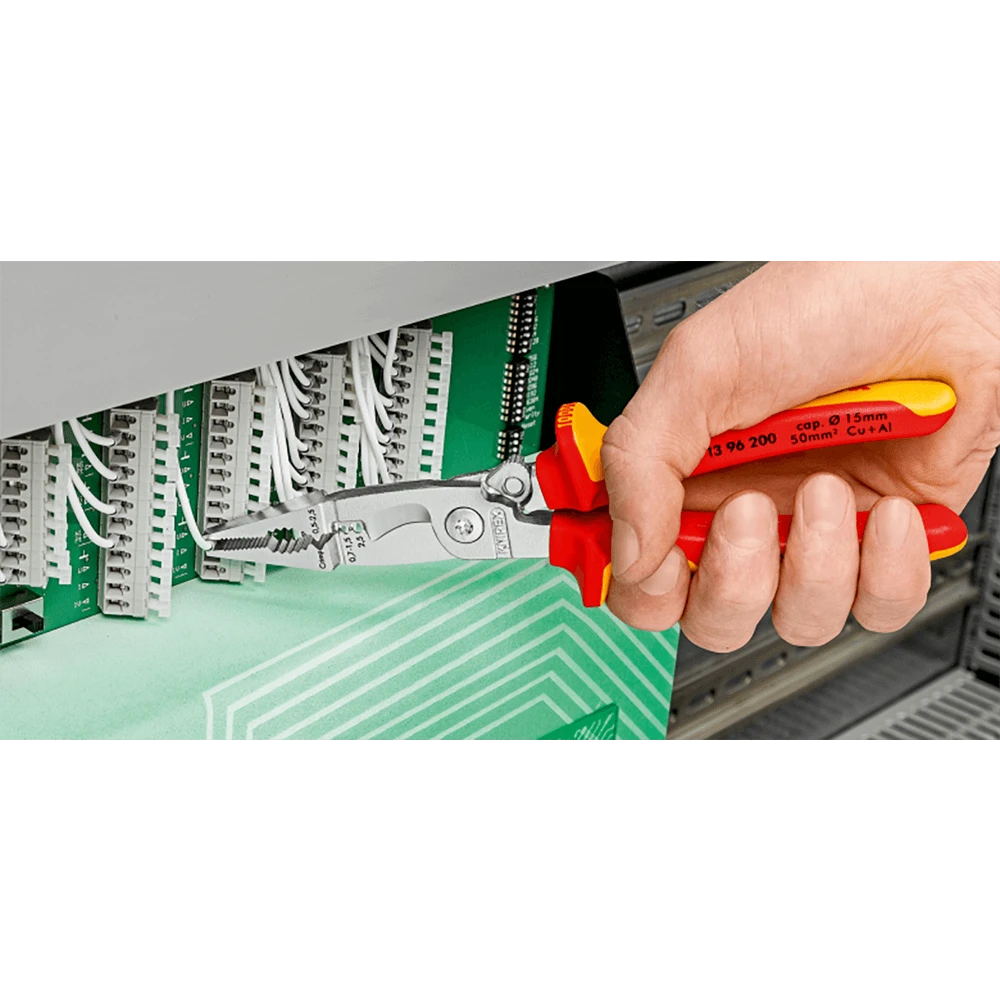

These Knipex 1000V Insulated 200mm Tethered Electrical Installation Pliers are multifunctional pliers for the electrical installation- to grip flat & round material, for bending, deburring, cutting cable, stripping & crimping end sleeves (ferrules).6 functions in one pair of pliers
.

Features & Benefits

• Multifunctional pliers for the electrical installation- to grip flat & round material, for bending, deburring, cutting cable, stripping & crimping end sleeves (ferrules).6 functions in one pair of pliers
• Smooth surfaces near the tips grip single cores without damaging them- serrated gripping surfaces & pipe grip for gripping flat & round material

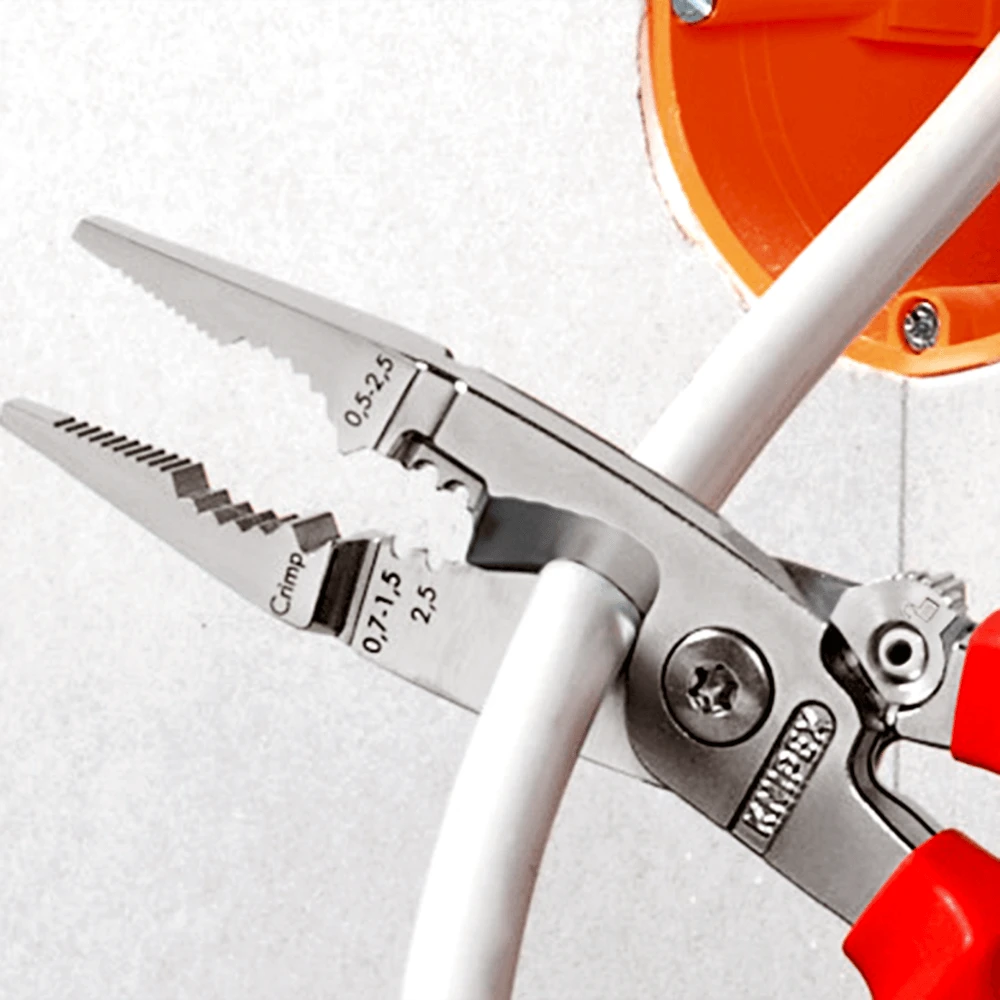

• Clear-cut outside edge on the jaw for working on flush-mounted junction boxes & deburring feed-through holes
• Stripping holes for conductors of 0.75 – 1.5 mm² & 2.5 mm²

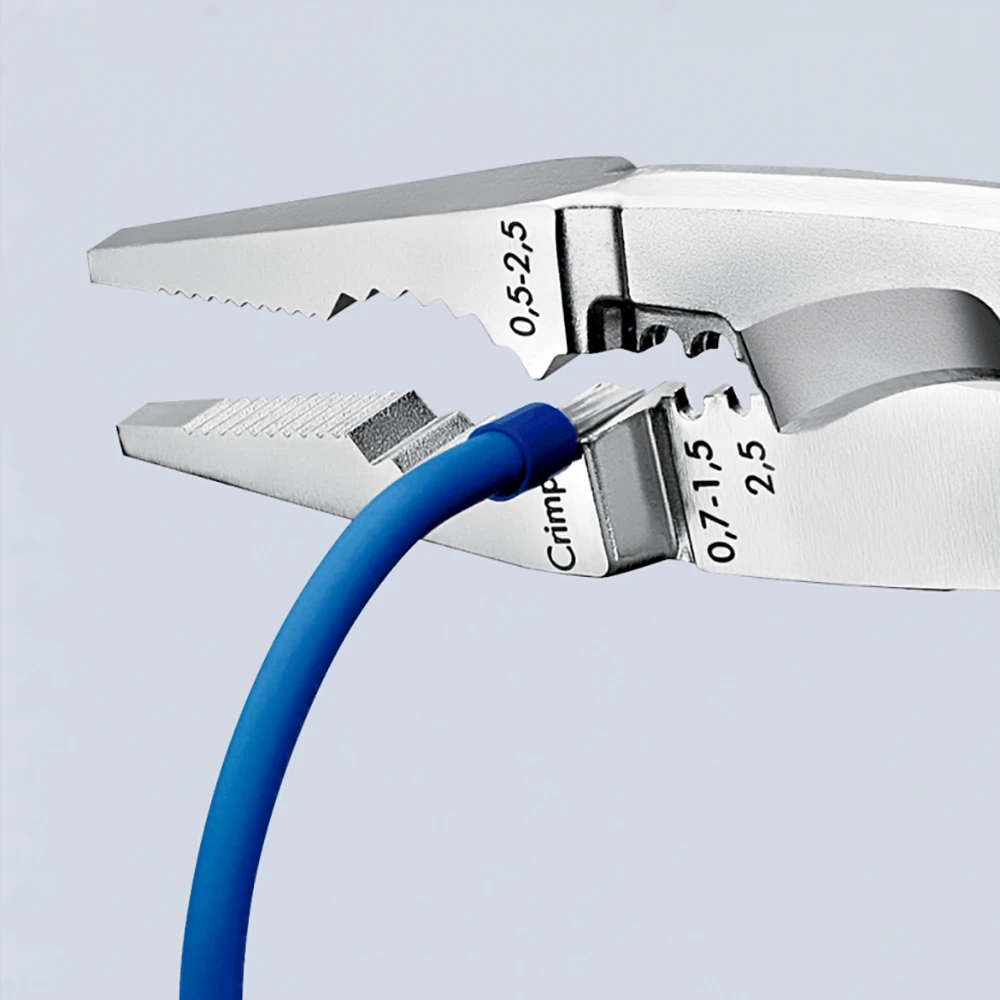

• Crimp die for wire-end ferrules 0.5 – 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper & aluminium cables up to 5 x 2.5 mm² / dia.15 mm
• Gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version)
• The cutting edge remains closed & protected
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers
• The activated locking lever keeps the cutting edges closed while other functions remain in place
• The intelligent latching mechanism enables you to “grip” without opening the pliers
• The cutting edge remains closed & protected

Specifications

AWG	1/0
Cable Capacity	Ø15mm / 50mm²
Length	200mm
Net Weight	280g
Pliers Finish	Chrome Plated
Stripping Capacity	0.75 -1.5 / 2.5mm²
